Optical Fiber Coloring machine from China manufacturer - Hefei Tongding Optical-Electronics Technology Co.,Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TD05

Production Capacity: 2000 / year

Delivery Date: one month

Rewinding speed: ≤1800m/min: Traversing pitch:0.11.0mm±0...

Means of Transport: Ocean

Packing: Plastic bag inside and Wood...

Brand Name: TD Tech

1. Application of the machine:
The equipment is mainly used to color the surface of optical fibers and makes it easy to identify

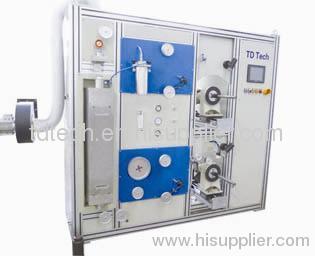

Optical Fiber Coloring and Rewinding machine

1. Application of the machine:

The equipment is mainly used to color the surface of optical fibers and makes it easy to identify the multi-fibers within the loose tube. Also used to rewind fibers and coat the nylon-tighted fibers with the silicon gel.

2.Main technical data:

Coloring speed
≥1600m/min (Nitrogen gas )
Rewinding speed
≤1800m/min
Pay-off and take-up tension
0.3N1.2N±0.05N
Traversing pitch
0.11.0mm±0.01mm
Extra-attenuation after coloring
≤0.02dB/Km(SM , 1500Nm)
Optical fiber reel size (max.)
25km/50km reel weight 10kg

3. Components:

The optical fiber coloring and rewinding equipment consists of some units as follows:

3.1 Movable optical fiber pay-off unit 1

3.2 Direction control unit 1

3.3 Take-up and pay-off tension control unit 1

3.4 Fiber coloring and material supply system 1

3.10 Button station 1

3.11 Release static system 1

3.12 Electric control system and software 1

3.13 Air Fan 1
